ARBOR

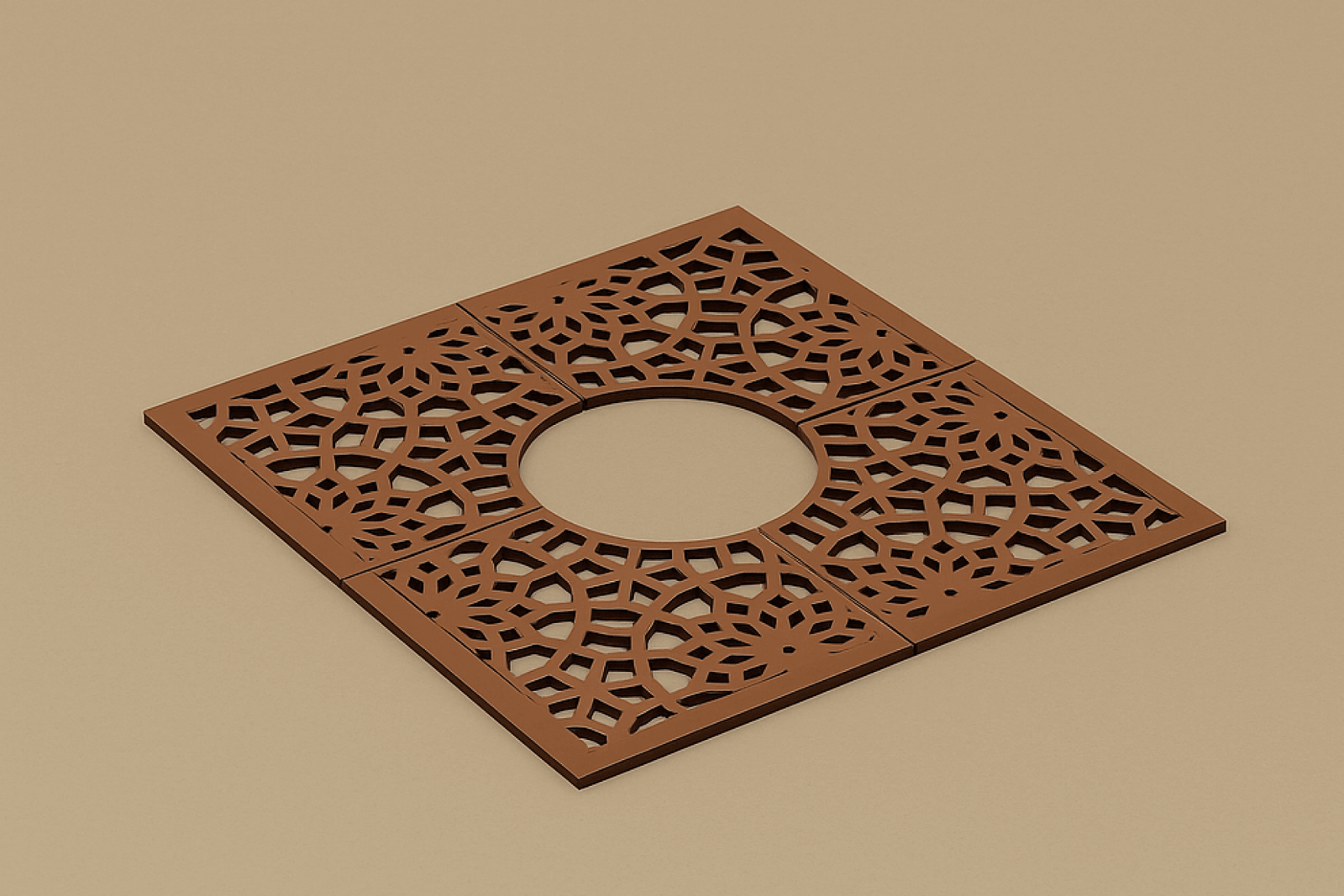

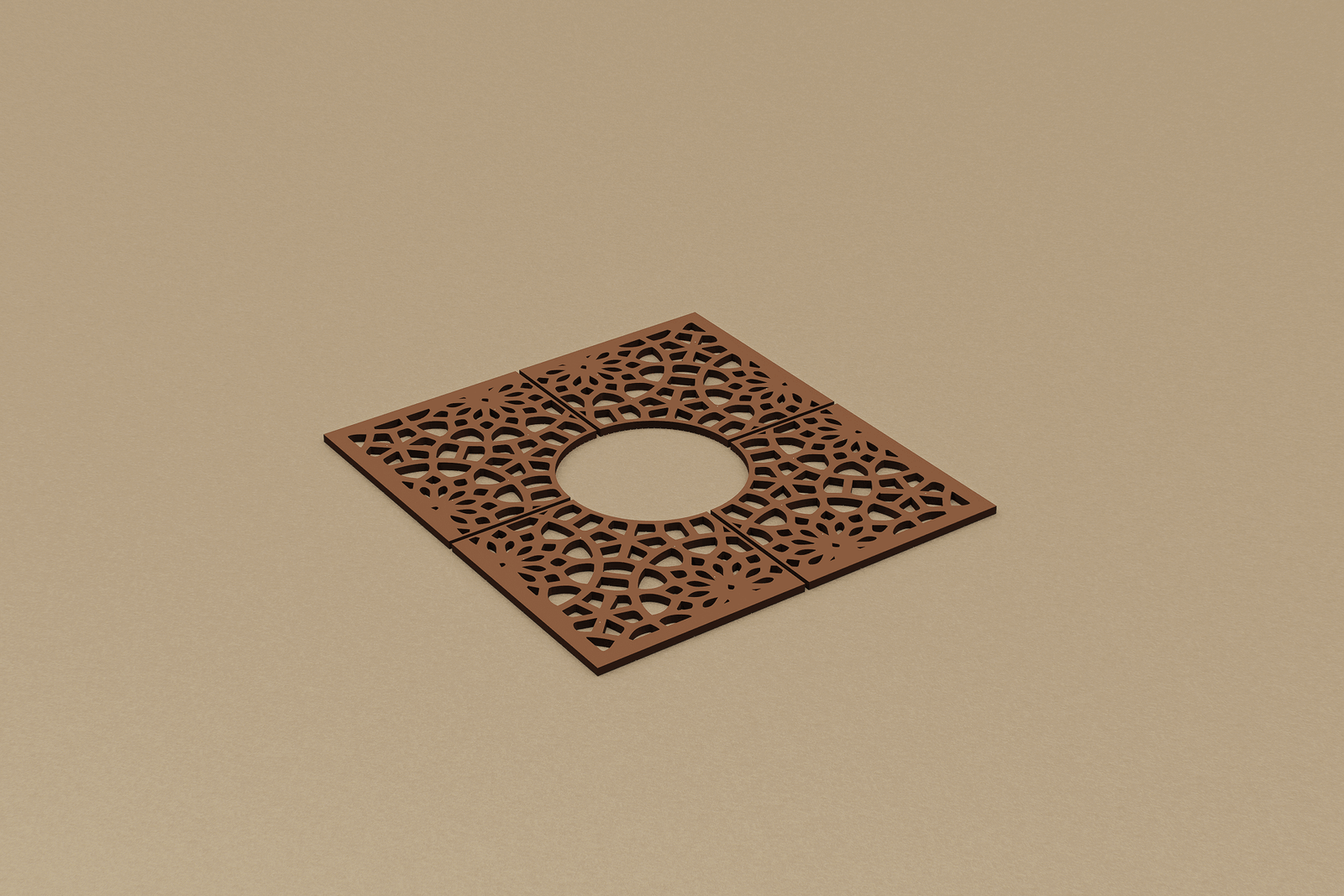

The ARBOR Tree Grate (from the Latin arbor, meaning “tree”) is a fusion of robust engineering and artistic design, crafted to protect urban trees while enhancing streetscapes. Its square outer frame with a precision-cut circular inner aperture seamlessly blends geometric contrast with functional elegance. The laser-cut patterns—reminiscent of organic branching or modern abstract motifs (adjust based on image)—ensure optimal soil aeration and root protection. Designed for high-traffic areas, the ARBOR combines industrial strength with aesthetic versatility, making it ideal for smart cities and heritage districts alike.
Key Features:
- 5-ton load capacity (EN 124 compliant)
- Anti-slip pattern (R10 rating)
- Radial slot design for trunk expansion
- 30% open area for water/air permeability
- Smooth, burr-free edges (EN 1176)
- ADA-compliant flush surface
- 100% recyclable steel
Primary Material: 10mm thick heavy-duty steel plate (S355JR grade)
- Reinforcement: Welded flat bar frame (50mm x 10mm) for load distribution
- Standard Finish:
- Base: Hot-dip galvanized (80µm coating)
- Topcoat: Thermoplastic powder coating (60µm)
- Color Options:
Category | Standard Colors | Custom Options |
|---|---|---|
Neutral Tones | Graphite Black, Slate Gray | RAL Classic/Pantone-matched |
Earth Tones | Bronze Green, Terracotta | Metallic/Textured finishes |
| Model | Outer Dimensions (LxW) | Inner Circle Diameter | Thickness | Weight |
|---|---|---|---|---|
| ARBOR-1400 | 1400mm × 1400mm | 700mm | 10mm + frame | ~85kg |
| *(Custom sizes/patterns available; max. 2000mm × 2000mm)* |
- Urban Streetscapes: Sidewalks, pedestrian malls
- Parks & Plazas: Heritage sites, botanical gardens
- Commercial Zones: Hotel entrances, retail districts
- Transit Corridors: Bus stops, tramway lines
- Embedded Mount:
- Concrete curb surround (50mm clearance gap for tree growth)
- Adjustable leveling screws for uneven surfaces
- Modular System:
- Interlocking panels for large-tree applications
- Anchoring:
- Stainless steel brackets (A4-80 grade) for vandal resistance
