ZEMARA

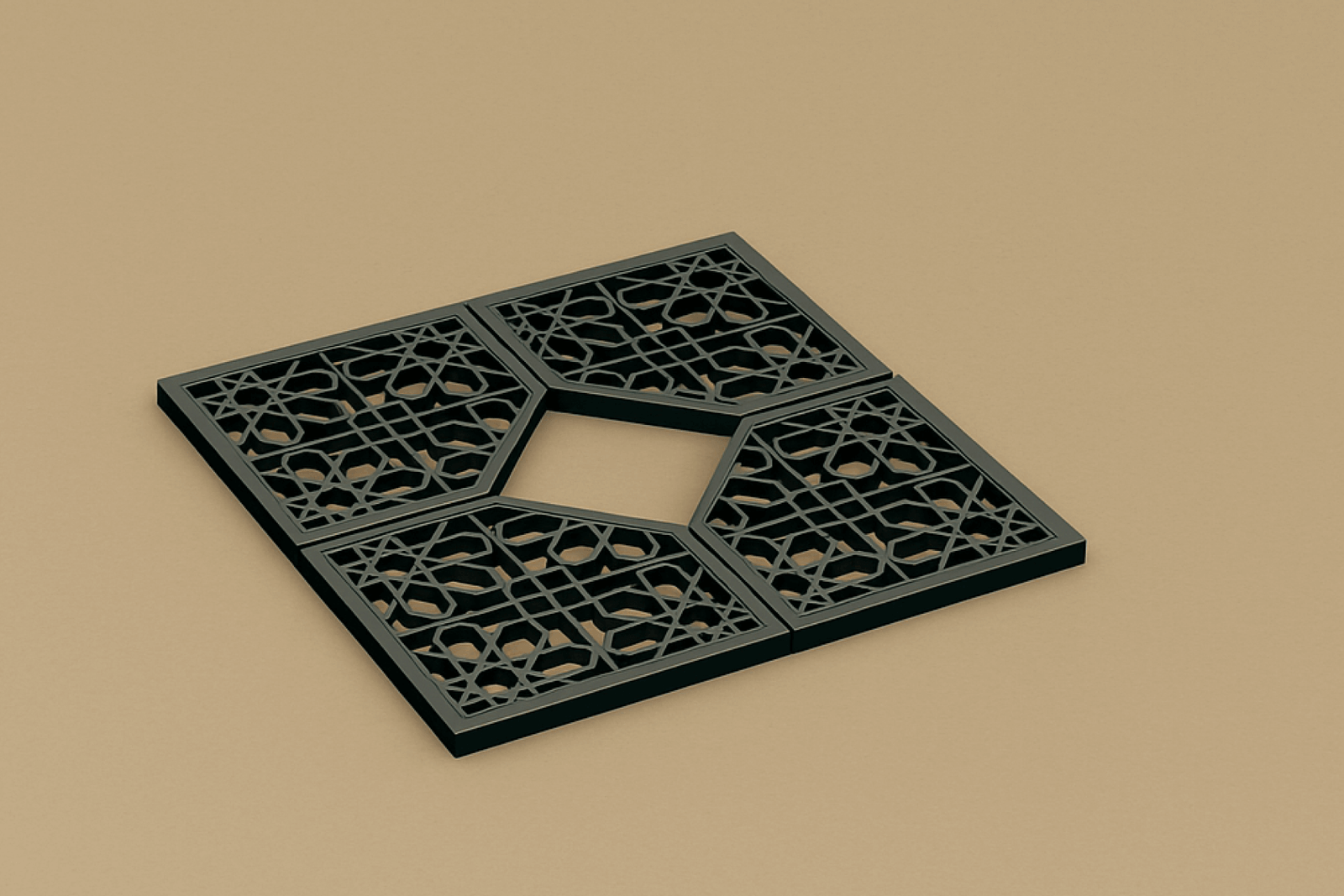

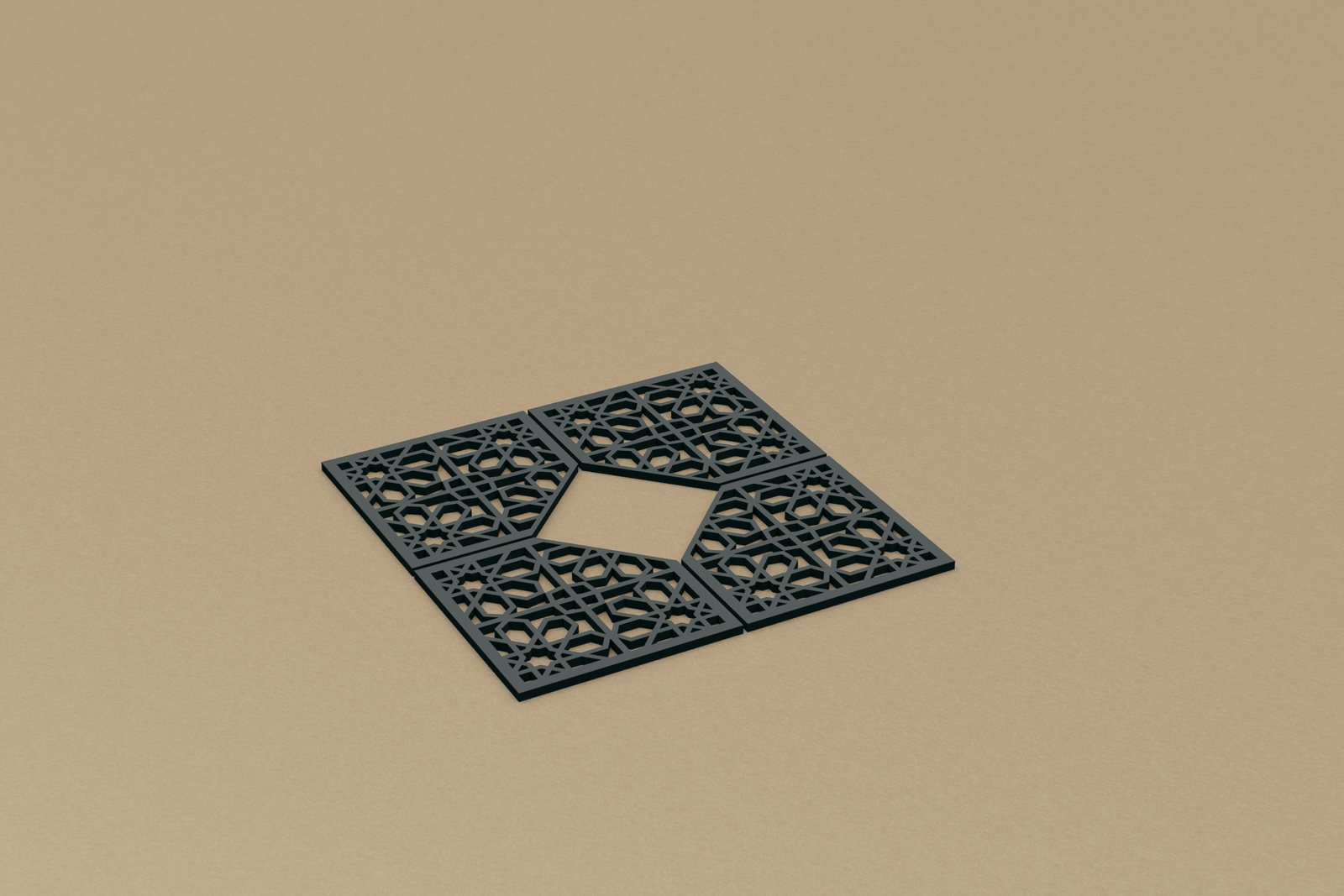

The ZEMARA Tree Grate reinterprets traditional Middle Eastern architectural motifs through contemporary urban design. Named after the Arabic word “Zamara” (meaning “to embellish”), its intricate laser-cut Mashrabiya pattern merges cultural heritage with modern functionality. The square outer frame encloses a striking diamond-shaped inner opening, creating a geometric interplay of light and shadow. Engineered for high-traffic urban environments, ZEMARA provides superior tree protection while enhancing streetscape aesthetics with its ornamental yet durable steel construction.
Key Features:
- Authentic Mashrabiya-inspired laser patterns
- Geometric precision with <0.5mm tolerance
- 12-tonne vehicular load rating (EN 124 compliant)
- Anti-vibration pads reduce noise from foot traffic
- Self-cleaning pattern design (debris shedding)
- Spot-repair enabled coating system
- Outer Dimensions: 1400mm × 1400mm (square)
- Inner Opening: 600mm × 600mm (diamond)
- Technical Details:
- Open area ratio: 35% (optimized for root aeration)
- Pattern thickness: 8mm (balance of strength and delicacy)
- Customization:
- Scalable designs (1m to 2.5m square)
- Adjustable inner shapes (hexagonal/octagonal variants)
- Logo integration within pattern
Outer Dimensions: 1400mm × 1400mm (square)
Inner Opening: 600mm diameter (expandable for tree growth)
Customizable Options:
Sizes from 1m to 2m square
Adjustable inner diameters (400mm–800mm)
Pattern variations (radial lines, geometric motifs)
Weight: 85 kg (standard size)
Load Rating: ANSI AASHTO H-20 (wheel load up to 16,000 kg)
- Cultural Districts: Heritage sites, mosque precincts
- Urban Renewal: Pedestrian malls, smart city projects
- Commercial: Luxury resorts, five-star hotel landscapes
- Climate-Specific:
- Desert environments (UV-resistant coatings)
- Coastal areas (marine-grade corrosion protection)
- Modular Setup:
- Interlocking panel system for large tree pits
- Adjustable leveling shims (±15mm tolerance)
- Anchoring Methods:
- Concrete embedment (standard)
- Bolt-down option for temporary installations
- Tree Compatibility:
- Growth accommodation gap: 50mm radial expansion
- Optional rubber trim for trunk protection
